When using the HT-M00 gateway, using nodes other than the company's CubeCell

series, you need to change the node's transmit preamble length to 16 (the default is 8).

If the preamble length is not modified to 16, only SF7 can be received.

HT-MOO Overview

CE Certificate

ESP32 + SX1276

Size: 75 x 30 x 13mm

Emulates LoRa demodulators

Automatic adaptive spread spectrum factor, SF7 to SF12 for each channel is optional

Maximum output: 18 ± 1dBm

Communication interface Type-C USB

The power supply voltage:5V

Support for LoRaWAN Class A, Class C protocols

Frequency range:

Europe – 868MHz ISM band (863MHz to 870MHz range)

Europe – 433MHz ISM band

USA/Australia – 915MHz ISM band (902MHz to 928MHz range)

China – 470MHz ISM band (470MHz to 510MHz range)

Technical Parameters

Main control chip:esp32

LoRa RF chip :SX1276

Working Band (optional):EU_433, CN_470_510, EU_863_870, US_902_928

LoRa maximum output power:18dB ± 1dB

Receiving sensitivity

Interface:USB Type-C x 1

USB to Serial chip:CP2102

size :75 x 30 x 13mm

Working temperature: -40 ~ 80 ℃

Below is our heltec nodes

433MHZ Antenna

868-915MHZ Antenna

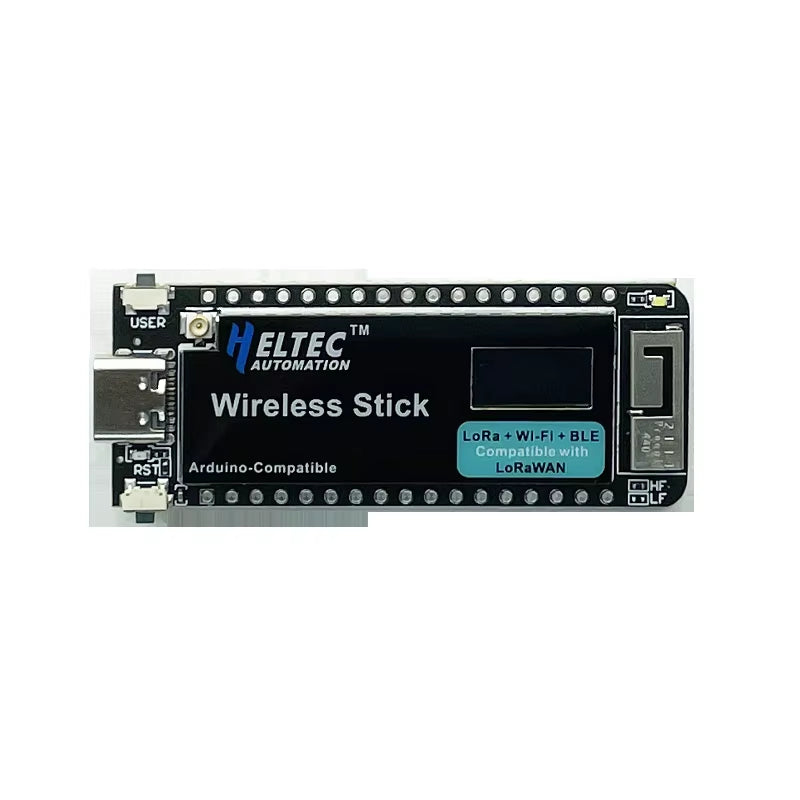

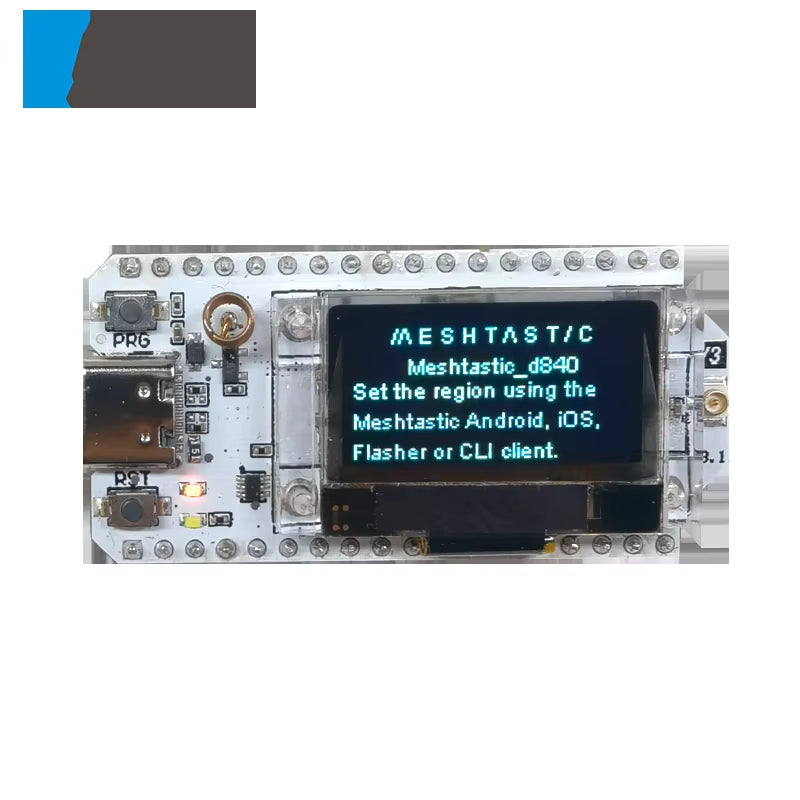

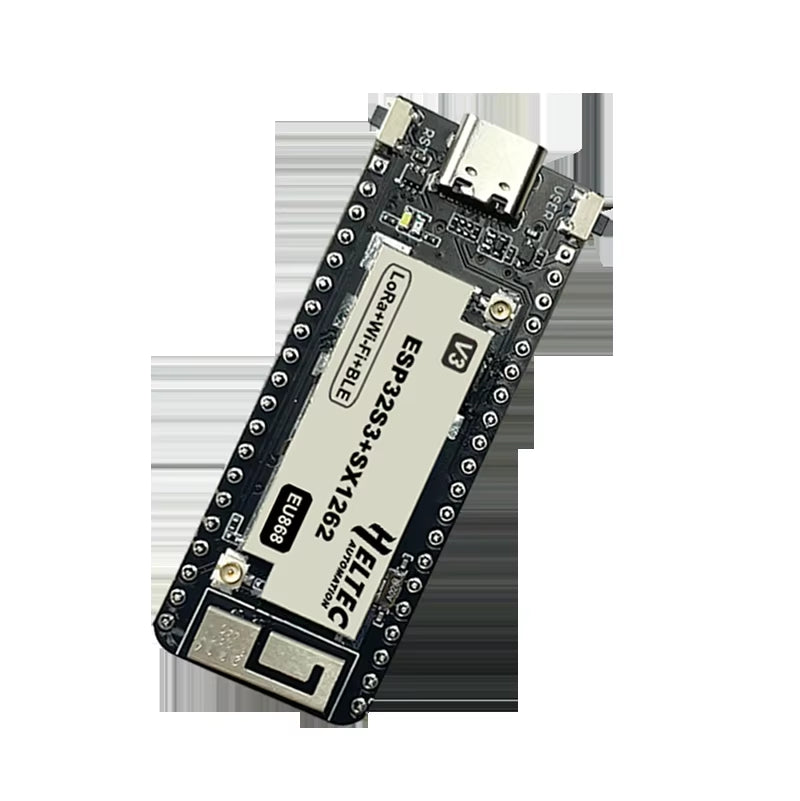

WiFi Lora 32 V2 /Wireless Stick/Wireless Stick Lite

WiFi Lora 32 V2: 0.96inch OLED

Wireless Stick : 0.49inch OLED

Wireless Stick Lite: No display

Frequency: 240MHz

FLASH:64M-bits

The processor: 2*Tensilica LX6 + 1*ULPThe processor

Main control chip:ESP32

LoRachip support frequency band: SX1276(868-915,923MHz);

Open communication distance:3KM

Computing power:As high as 600 dmips

Dual mode bluetooth: Traditional bluetooth and BLE low power bluetooth

The development environment:Perfect support for Arduino

Working voltage: 3.3v~ 7v

Operating range temperature:-40~80℃

Receiver sensitivity:-139dbm(SF12, BW125KHz)

UDP continuous throughput:135Mbps

USB-to-UART bridge chip:CP2102

WIFI Support mode:sniffer,Station,softAP,Wi-Fi Direct

Details:

Lora Node 151

CubeCell

Based on the ASR650x series of chips, we have done a lot of migration and development, made it

perfectly support Arduino®, can run the LoRaWAN protocol stably, and can easily connect lithium

batteries and solar panels... This is the CubeCell series.

HTCC-AB01 Feture

HTCC-AB02 Overview

Perfect Arduino-Compatible!

CE and FCC certification;

Based on ASR605x (ASR6501, ASR6502), those chips are already integrated the PSoC® 4000 series

MCU (ARM® Cortex® M0+ Core) and SX1262;

LoRaWAN 1.0.2 support;

Ultra low power design, 3.5uA in deep sleep;

Onboard solar energy management system, can directly connect with a 5.5~7V solar panel;

Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching);

Micro USB interface with complete ESD protection, short circuit protection, RF shielding, and other protection measures;

Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing;

Good impendence matching and long communication distance.
Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power, and other information;

Feature

MCU:ASR6502 (48 MHz ARM® Cortex® M0+ MCU, 128KB FLASH, 16KB SRAM )

LoRa Chip:ASR6502 (Internal assembled Semtech® LoRa® Transceiver SX1262)

LoRa working band:EU_433, CN_470_510, EU_863_870, US_902_928

LoRa maximum output power:22 ± 1dB

Hardware resources:UART x 2; SPI x 2; I2C x 2; SWD x 1; ADCx 3 12 – bits ADC; 8 – channel DMA engine 14 x GPIO

FLASH:128KB internal FLASH

Interface:Micro USB x 1; LoRa (IPEX) x 1

Size :50.9 x 22.9 x 8 mm

USB-UART bridge :CP2102

Battery Type :3.7V Lithium (SH1.25 x 2 socket)

Battery detection circuit:√

External device power control(Vext):√

Low power design:Deep Sleep 3.5uA

HTCC-AB02S GPS Feture

MCU:ASR6502 (48 MHz ARM® Cortex® M0+ MCU, 128KB FLASH, 16KB SRAM )

LoRa Chip:ASR6502 (Internal assembled Semtech® LoRa® Transceiver SX1262)

LoRa working band:EU_433, CN_470_510, EU_863_870, US_902_928

LoRa maximum output power:22 ± 1dB

Hardware resources:
UART x 2; SPI x 1; I2C x 1; SWD x 1; ADCx 3; COMP x 1
12 – bits ADC; 8 – channel DMA engine
14 x GPIO

FLASH:128KB internal FLASH

Interface:Micro USB x 1; LoRa (IPEX) x 1

Size: 55.9 x 27.9 x 9.5 mm

USB-UART bridge :CP2102

Battery Type: 3.7V Lithium (SH1.25 x 2 socket)

Battery detection circuit :√

External device power control(Vext): √

Low power design

Deep Sleep :3.5uA

HTCC-AB02A Feature

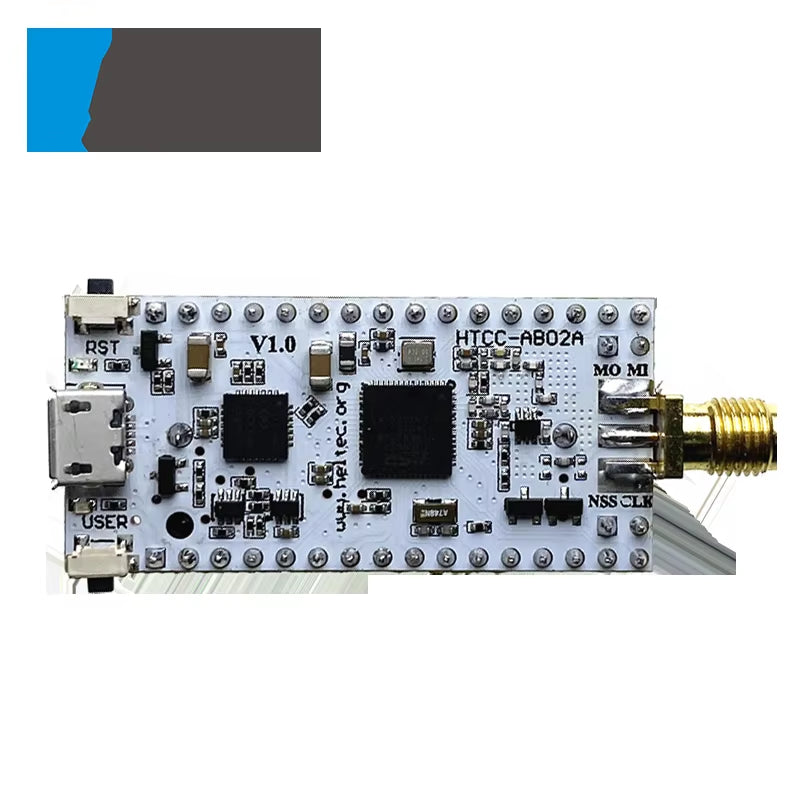

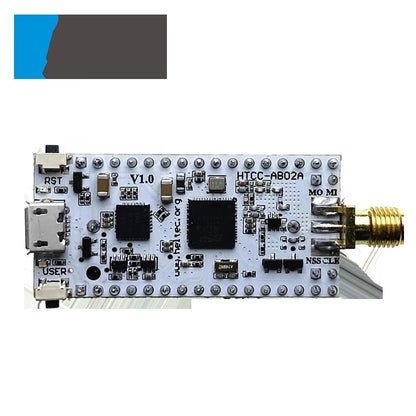

CubeCell 1/2AA Node HTCC-AB02A

MCU:ASR6502 (48 MHz ARM® Cortex® M0+ MCU, 128KB FLASH, 16KB SRAM )

LoRa Chip:ASR6502 (Internal assembled Semtech® LoRa® Transceiver SX1262)

LoRa working band:EU_433, CN_470_510, EU_863_870, US_902_928

LoRa maximum output power:22 ± 1dB

Hardware resources:
UART x 2; SPI x 1; I2C x 1; SWD x 1; ADCx 3; COMP x 1;
12 – bits ADC; 8 – channel DMA engine;
14 x GPIO;

FLASH:128KB internal FLASH

Interface:Micro USB x 1; LoRa (SMA) x 1

Size:56.6 x 24 x 20 mm

USB-UART bridge:CP2102

Battery Type:3.7V Lithium (SH1.25 x 2 socket)

Battery detection circuit:√

External device power control(Vext):√

Low power design: Deep Sleep 3.5uA
