® T-Display-S3 AMOLED ESP32-S3 1.91-Inch RM67162 AMOLED Display Development Board OLED WIFI Bluetooth 5.0 Wireless Module
® T-Display-S3 AMOLED ESP32-S3 1.91-Inch RM67162 AMOLED Display Development Board OLED WIFI Bluetooth 5.0 Wireless Module
Verfügbarkeit für Abholungen konnte nicht geladen werden

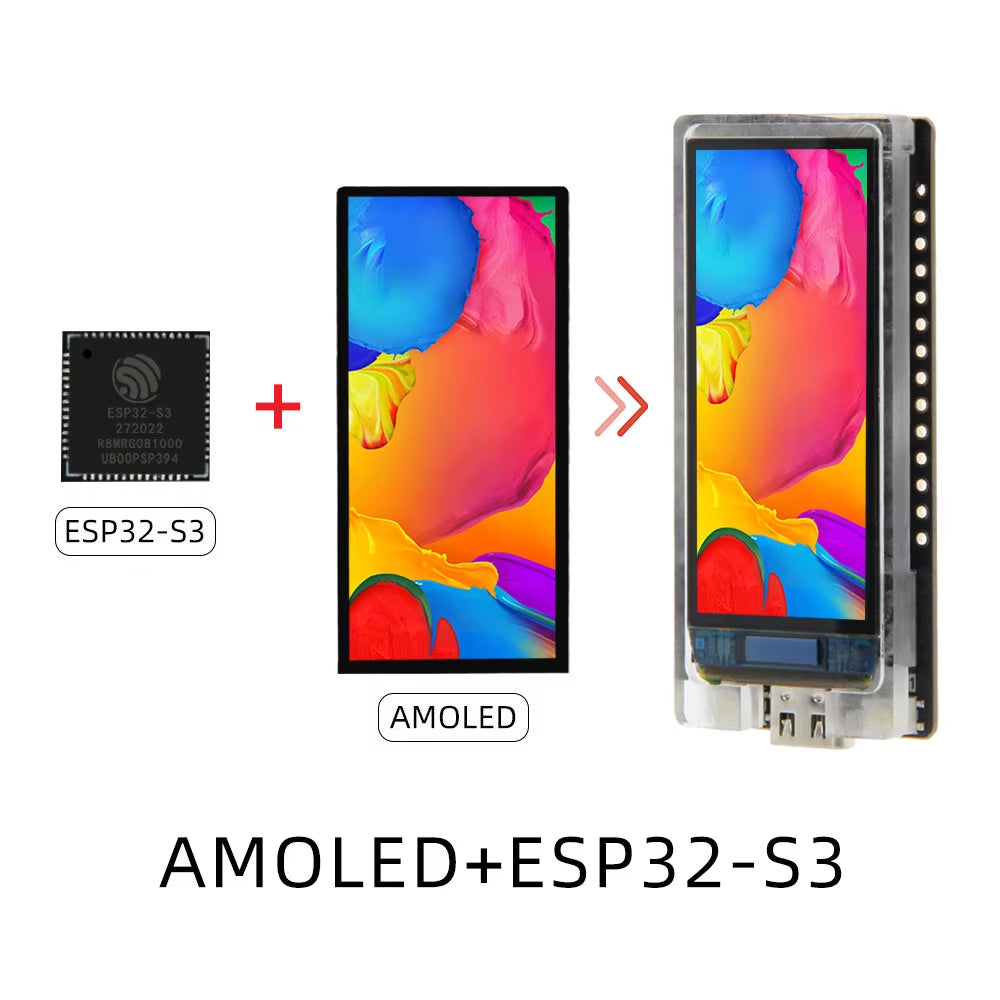

The inaugural development board that pairs ESP32-S3 with AMOLED display.

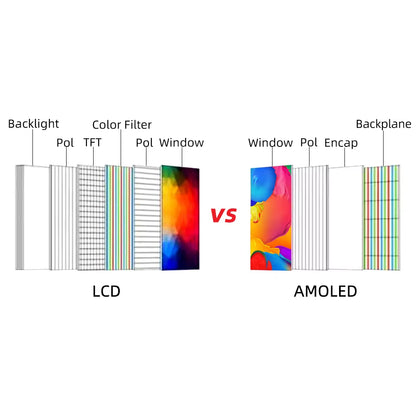

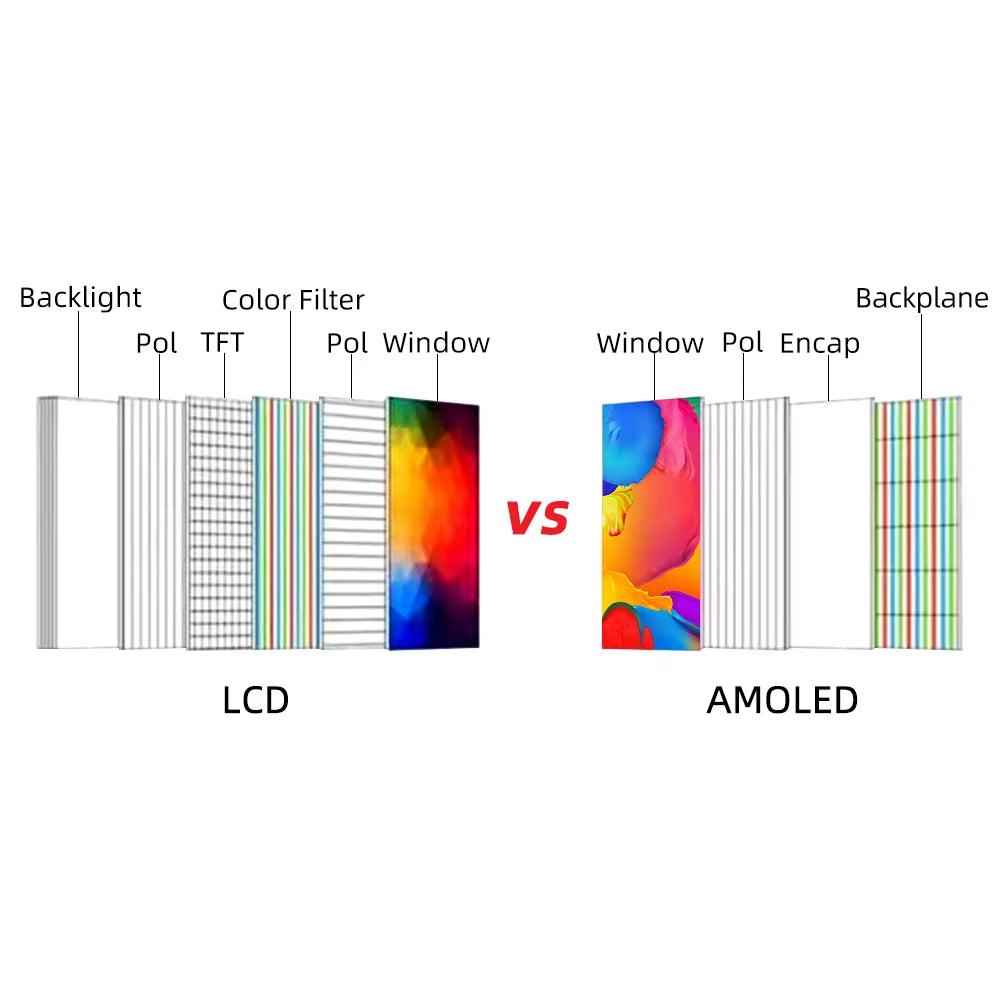

The AMOLED screen features vibrant colors, lower power consumption,
and the ability for individual pixels to light up.

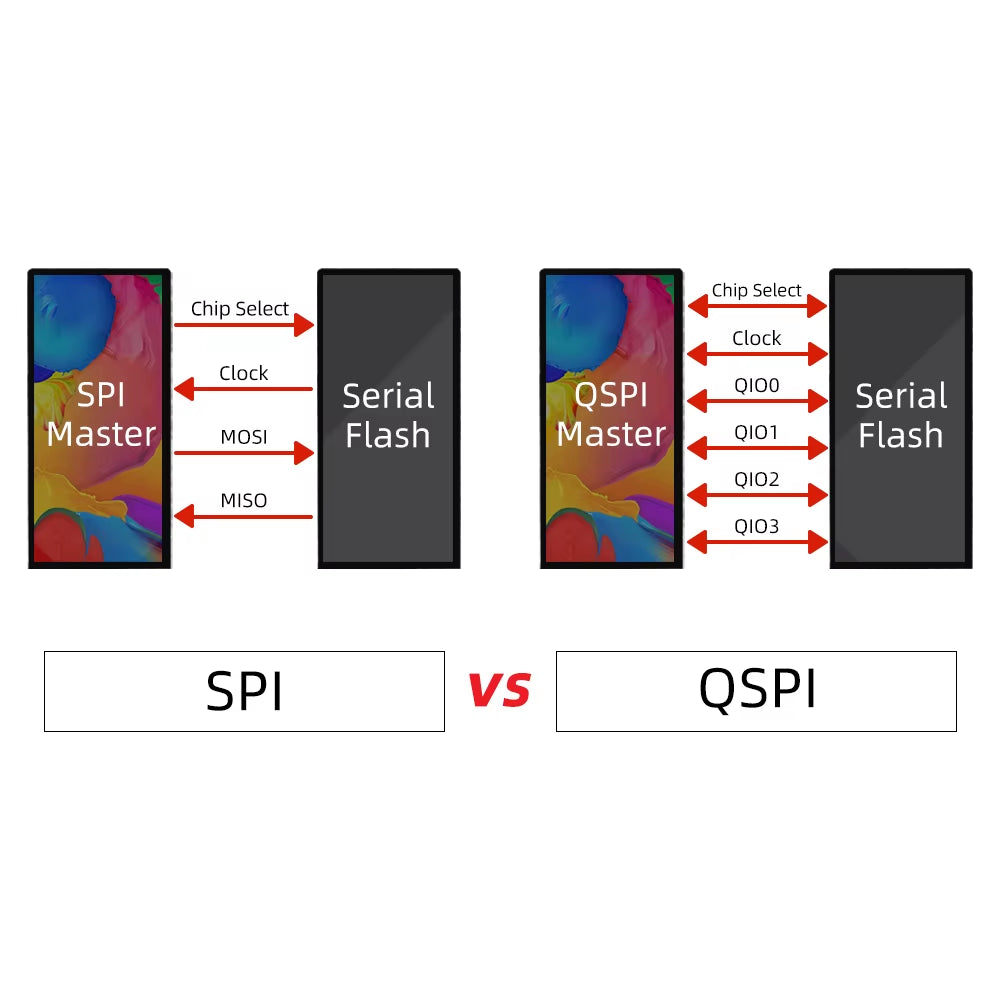

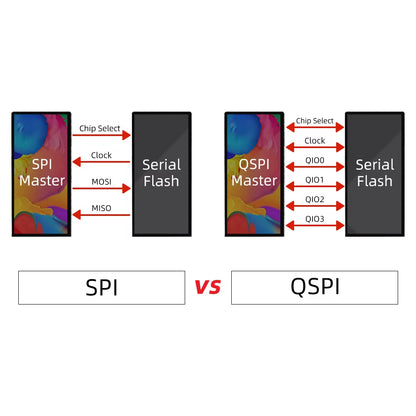

The 4-bit QSPI support provides a more efficient data transmission.
T-Display-S3 AMOLED Introduction

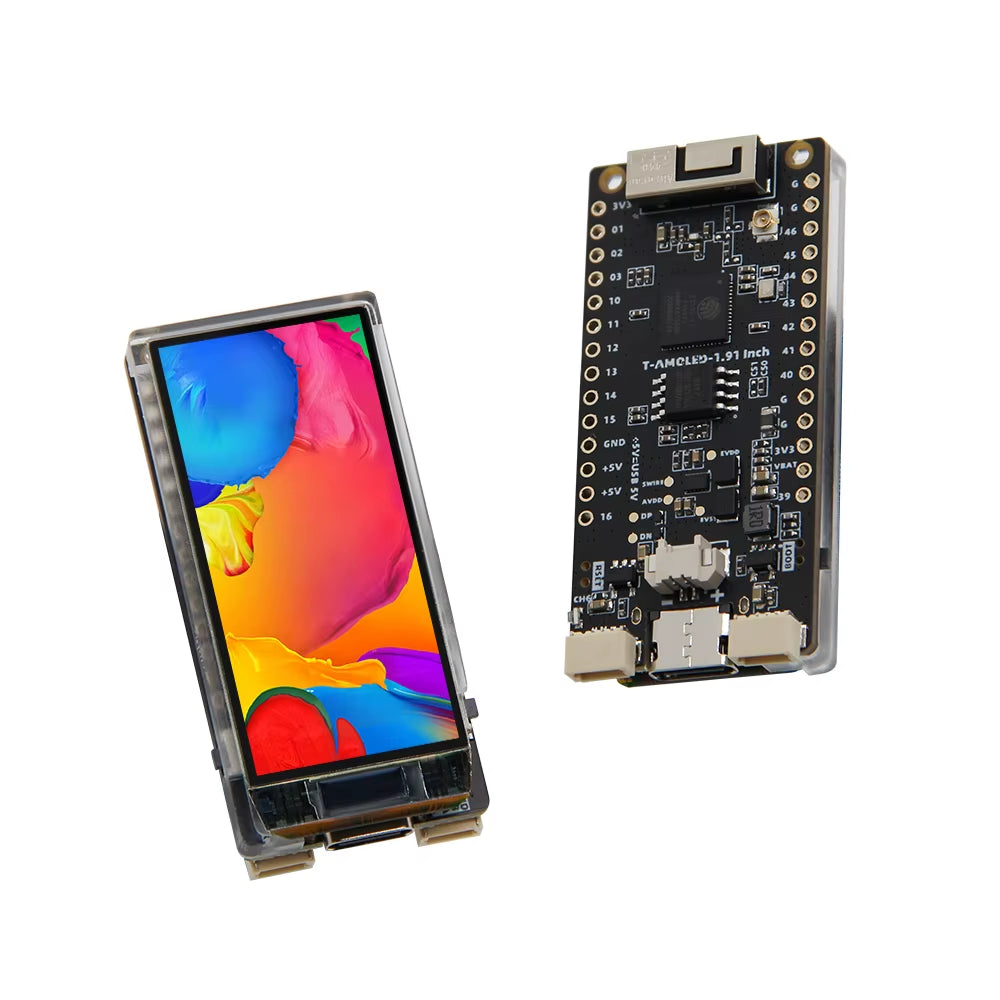

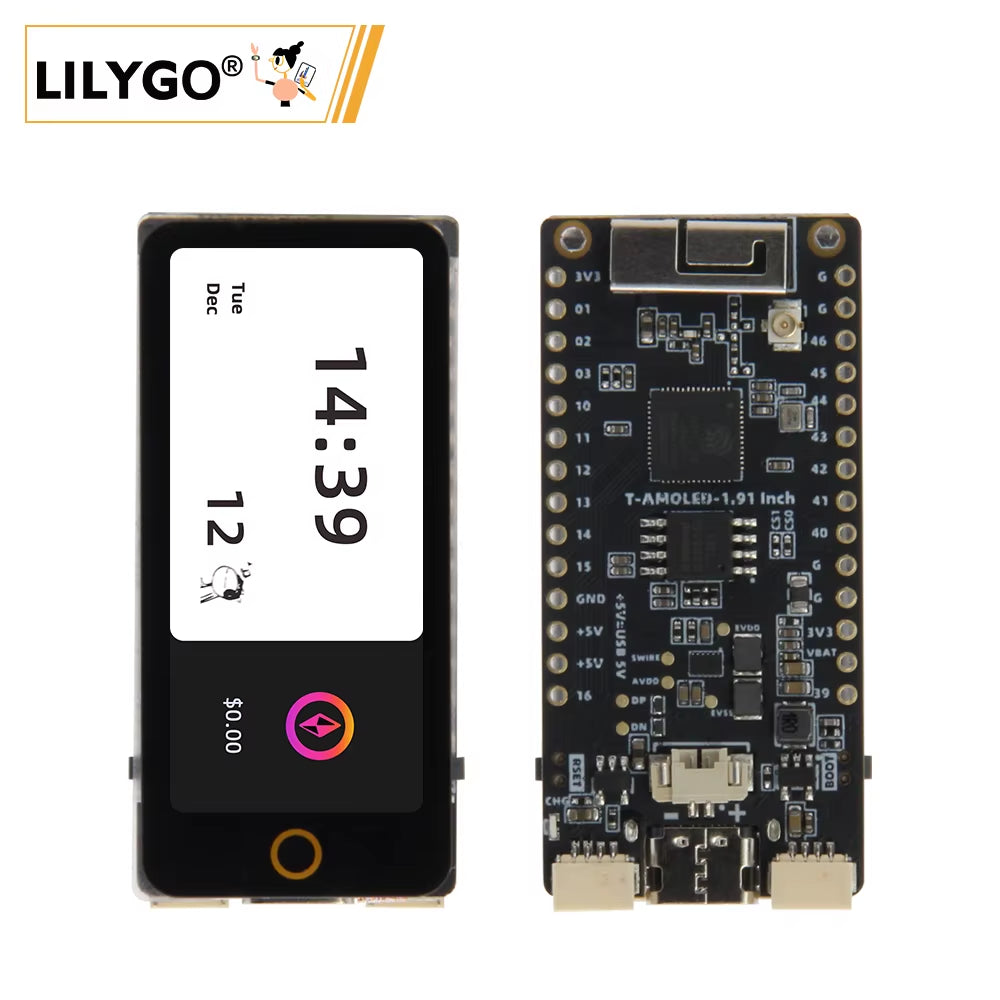

The T-Display-S3 AMOLED is an upgraded development board from the T-Display-S3, featuring the first ESP32-S3+AMOLED combination. It has upgraded from an LCD to an AMOLED display, providing better color display. Additionally, it has upgraded from an SPI to a QSPI interface for faster speed, and from an onboard antenna to a 3D antenna for an improved WiFi and Bluetooth experience.
LILYGO® April 4, 2023
Sample Code For Reference [Github]
If you need technical support please check the link to find more details.
Learn more about .
T-Display-S3 AMOLED | |
MCU |
ESP32-S3R8 Dual-core LX7 microprocessor |
Flash |
16MB |
PSRAM |
8MB |
Wireless Connectivity |
2.4 GHz Wi-Fi 802.11 |
Bluetooth 5.0 (LE) | |
Programming Platform |
Arduino-ide, PlatformlO-IDE, Micropython |
Bat voltage detection |
IO04 |
Onboard Functions |
Boot+Reset+IO21 Button |
1.91 inch RM67162 IPS AMOLED | |||
Drive Chip |
RM67162 |
Resolution |
240(W)xRGBx536(H) |
Active Area |
19.8x44.22mm |
Interface |
QSPI |
SViewing Angle |
IPS Full View Angle |
Old Version |
New Version |
|

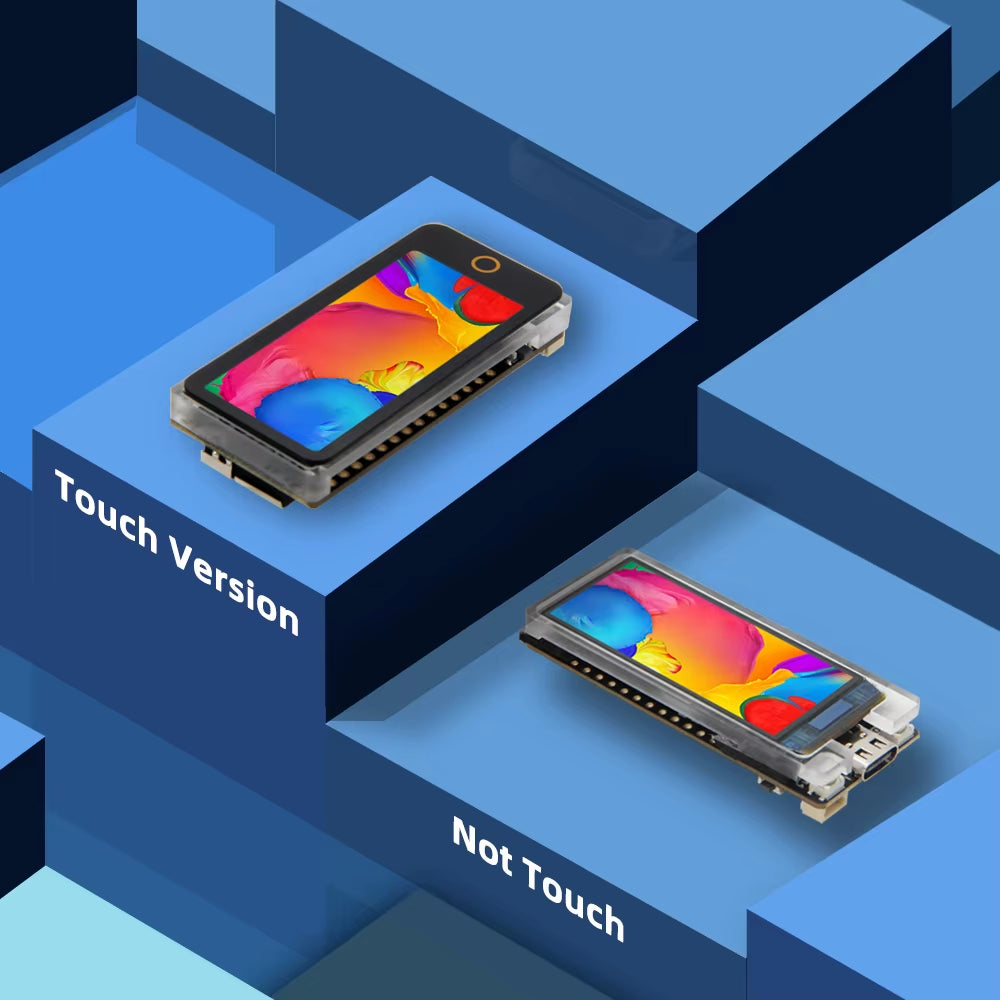

Basic Version |
Basic Version |
Touch Version |
|
|
|
|

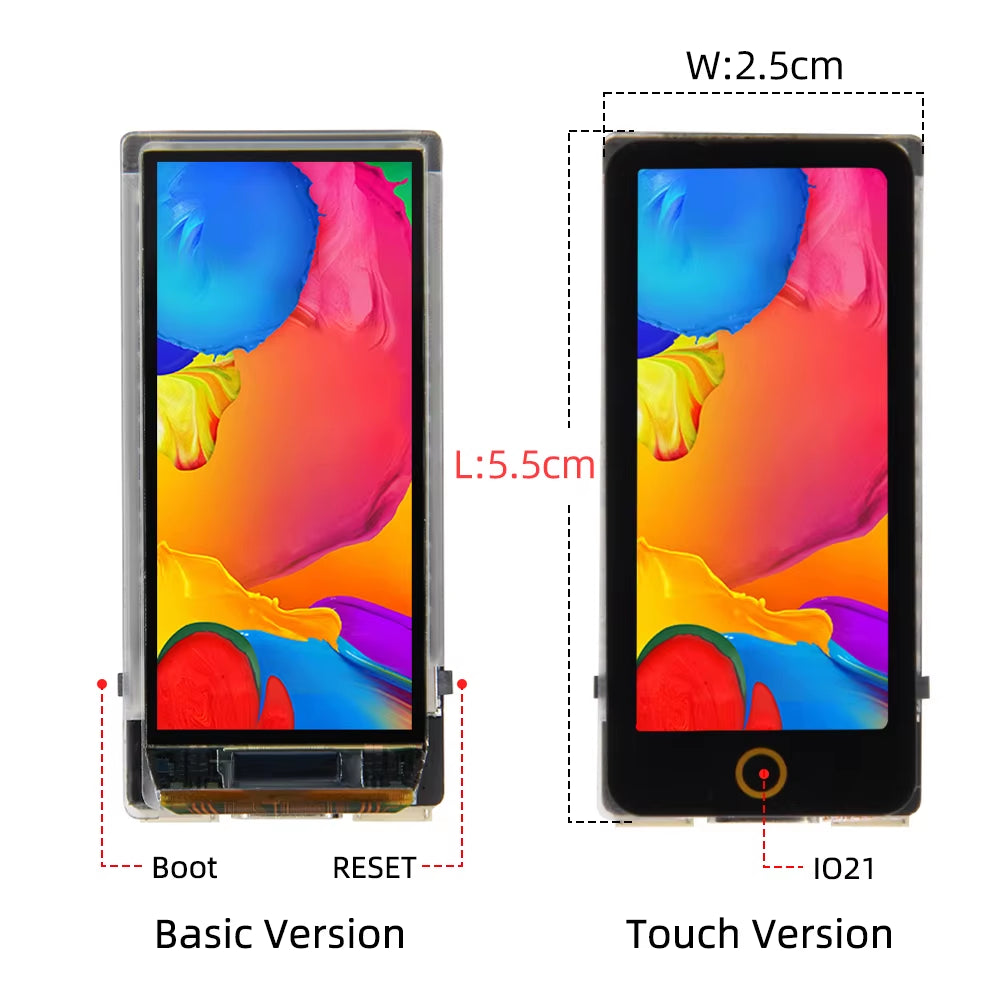

New Version Key Upgrades: Compact Size for Greater Portability, Side-Mounted BOOT, and RESET Button, Touch Version with Central Button. | ||
⚠️The performance of the new and old versions is identical. Choose the version that best suits your project. |
|
|
Old Version |
New Version |
Basic Version No touch | ||
No Soldering Pin |
Soldering Pin |
What's in the box? |
|
|
1 X T-Display-S3 AMOLED Touch |
2 X 2.54mm Male Pin (1*14P) | ||
1 X Power Cable 1.25mm 2P |
T-Display-S3

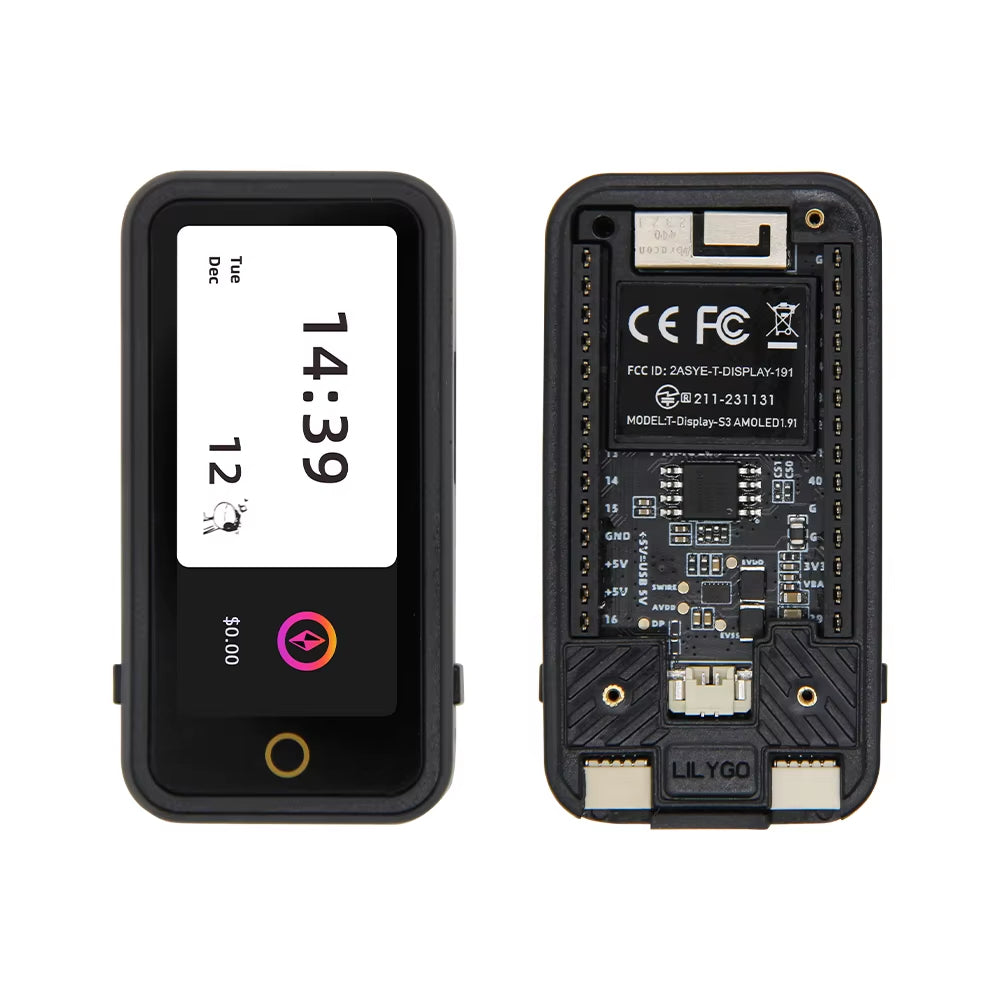

Touch Version | ||
No Soldering Pin |
Soldering Pin |
What's in the box? |
|
|
1 X T-Display-S3 AMOLED Touch |
2 X 2.54mm Male Pin (1*14P) | ||
1 X Power Cable 1.25mm 2P |

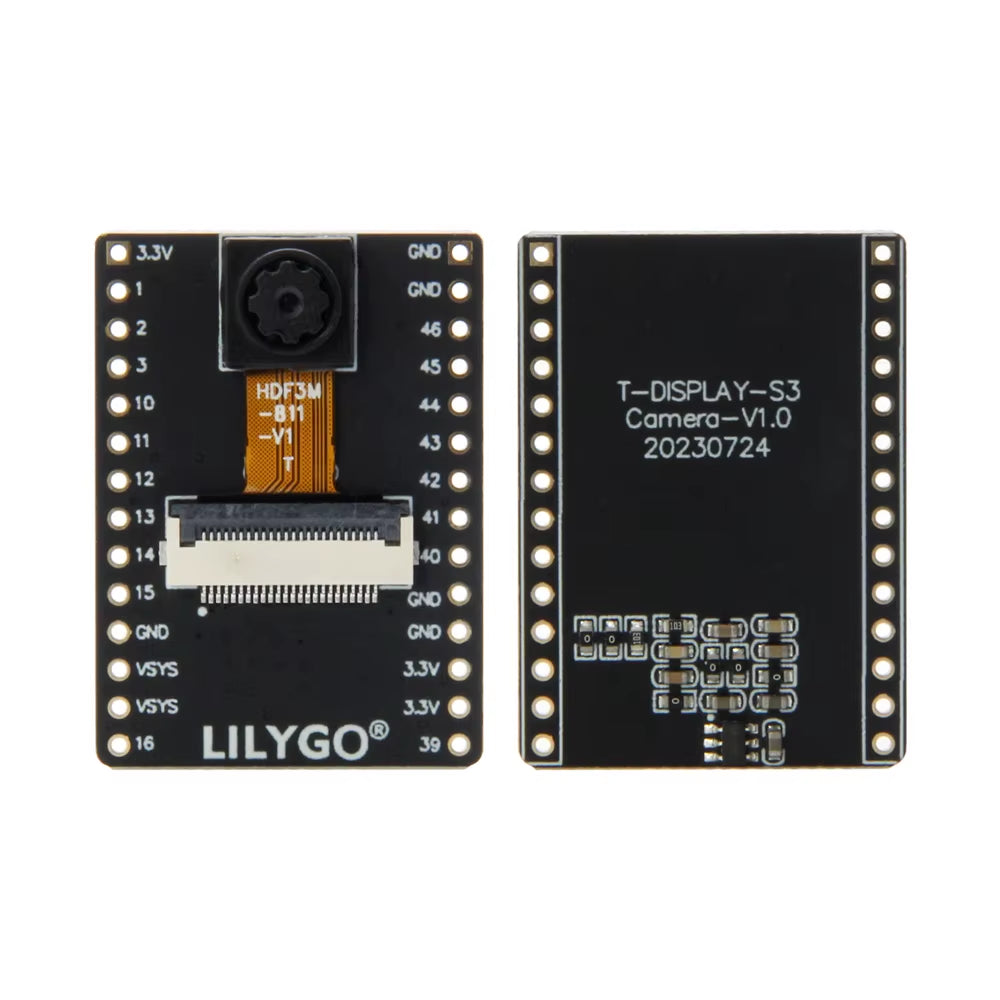

T-Display-S3 AMOLED Camera Shield
Camera Shield ⚠ [Please note that the package does not include the T-Display S3 AMOLED device, only the Camera Shield.] | ||
Only Camera Shield |
Not include the T-Display S3 |
What's in the box? |
|
1 X Camera Shield |
|
2 X Female Pin (1*14P) |
